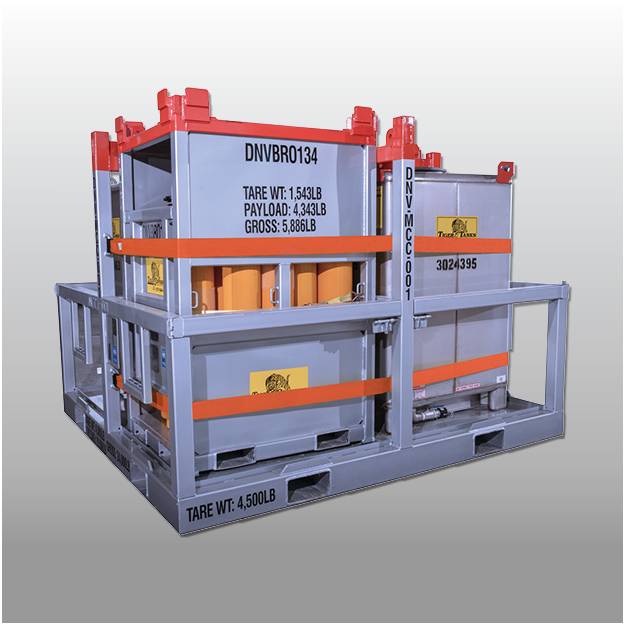

DNV Multi-Unit Carrier (4 Units)

DNV Multi-Unit Carrier (4 Units)

COMMON USES

The DNV Multi-Unit Carrier is designed to safely contain and transport (4) 550 gallon IBC Transport Tanks or multiple smaller CCU’s. It allows for easy loading & unloading of filled Tote Tanks and increases general workspace safety by securing the units during transit while reducing crane & boat time/expense.

Description

Description

DIMENSIONS (L x W x H)

EXTERNAL (MM) – 3150 x 2845 x 2184
EXTERNAL (FT) – 10’4″ x 9’4″ x 7’2″

WEIGHT (KGS / LBS)

TARE – 2041 / 4500
PAYLOAD – 13835 / 30500
MAX GROSS WEIGHT (MGW) – 15876 / 35000

ADDITIONAL FEATURES

Designed, Constructed, Tested to EN12079-1 / DNV 2.7-1 / SEPCo OPS 0055 / API RP

ATTACHMENTS

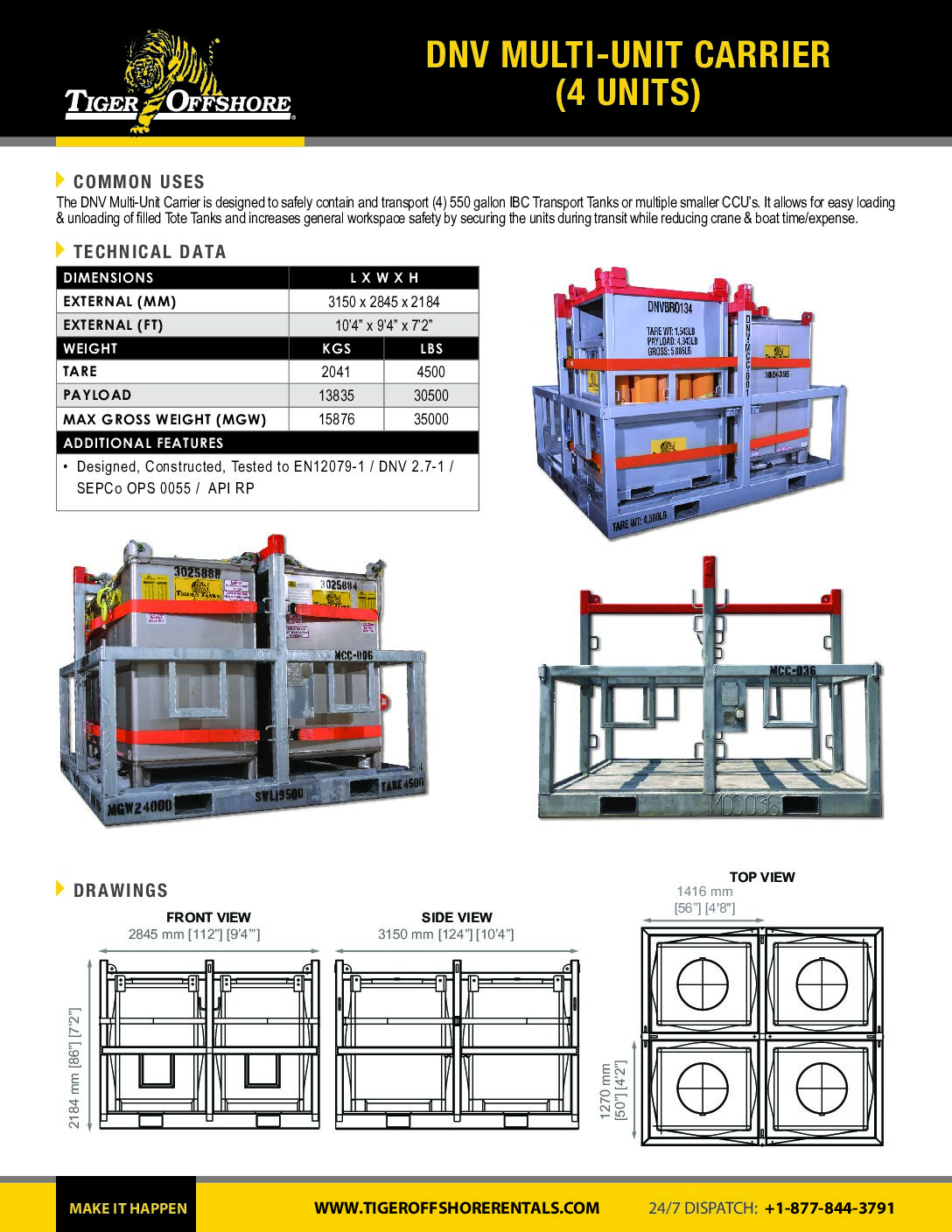

Specification Sheet – jpg | pdf

DNV Multi-Unit Carrier (4 Units)

DNV Multi-Unit Carrier (4 Units) - Image 2

you may be interested in...

Lifting Frames

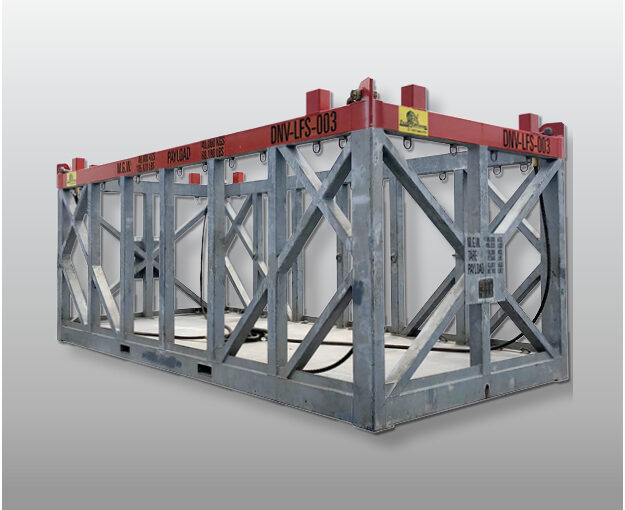

DNV 7.3 M Oversized Lifting Frame
DNV 7.3 M Oversized Lifting Frame COMMON USES The DNV 7.3M Oversized Lifting Frame is engineered to handle...

Learn More
Lifting Frames

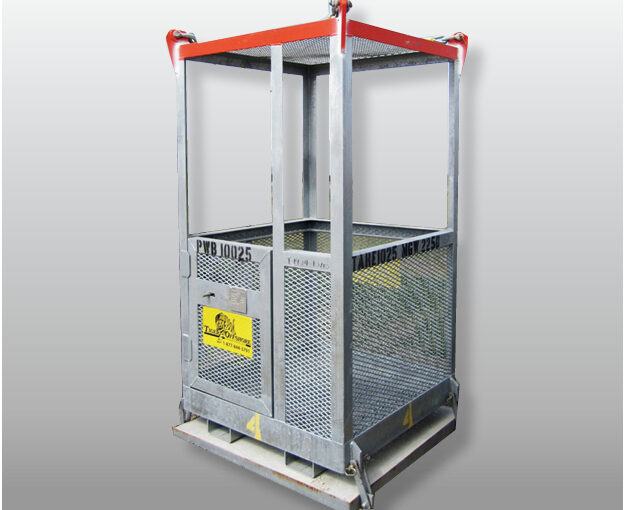

Personnel Basket
