    DNV 8’ X 24’ Half-Height Basket with Removeable Side Door

    COMMON USES

    The DNV 8’ x 24’ Half-Height Basket with Removeable Side Door is an all-purpose transporter that features a removable side door for side loading of large, bulky items. This basket is engineered/constructed to handle various size items during all types of offshore operations in any weather.

    Description

    DIMENSIONS (L x W x H)

    • EXTERNAL (MM) – 7315 x 2438 x 1280
    • EXTERNAL (FT) – 24’ x 8’ x 4’2”
    • INTERNAL (MM) – 6991 x 2114 x 857
    • INTERNAL (FT) – 22’12” x 6’12” x 2’10”
    • DOOR OPENING – 6000 MM – 19’9” [237”] [19’9”]

    WEIGHT (KGS / LBS)

    • TARE – 4150/9150
    • PAYLOAD – 11850/26130
    • MAX GROSS WEIGHT (MGW) – 16000/35280

    ADDITIONAL FEATURES

    • Designed, Constructed, Tested to EN12079-1 / DNV 2.7-1 / ISO 10855 / IMO MSC CIRC 860

    ATTACHMENTS

    • Specification Sheet – jpg | pdf

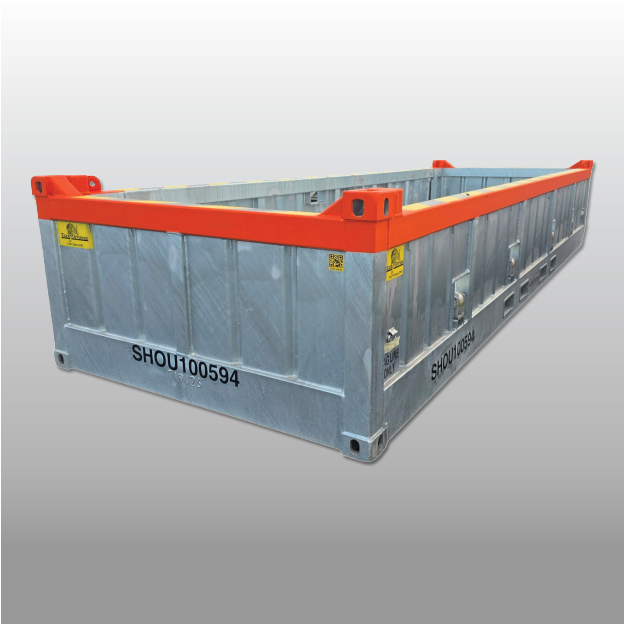

    DNV-8'-x-24'-Half-Height-Basket-with-Removeable-Side-Door-72dpi

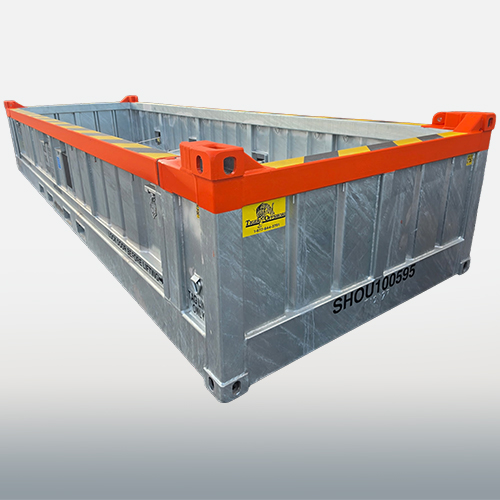

    DNV-8'-x-24'-Half-Height-Basket-with-Removeable-Side-Door-2

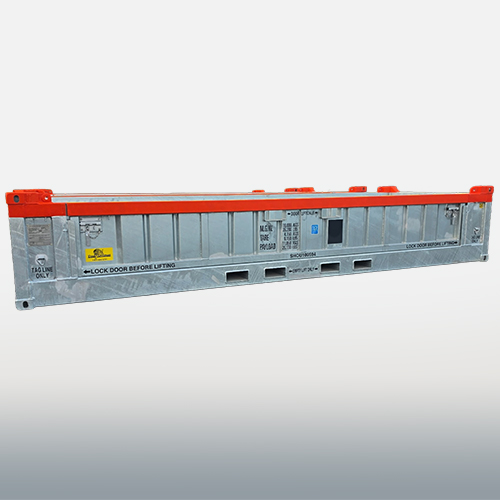

    DNV 8’ X 24’ Half-Height Basket with Removeable Side Door - Image 3

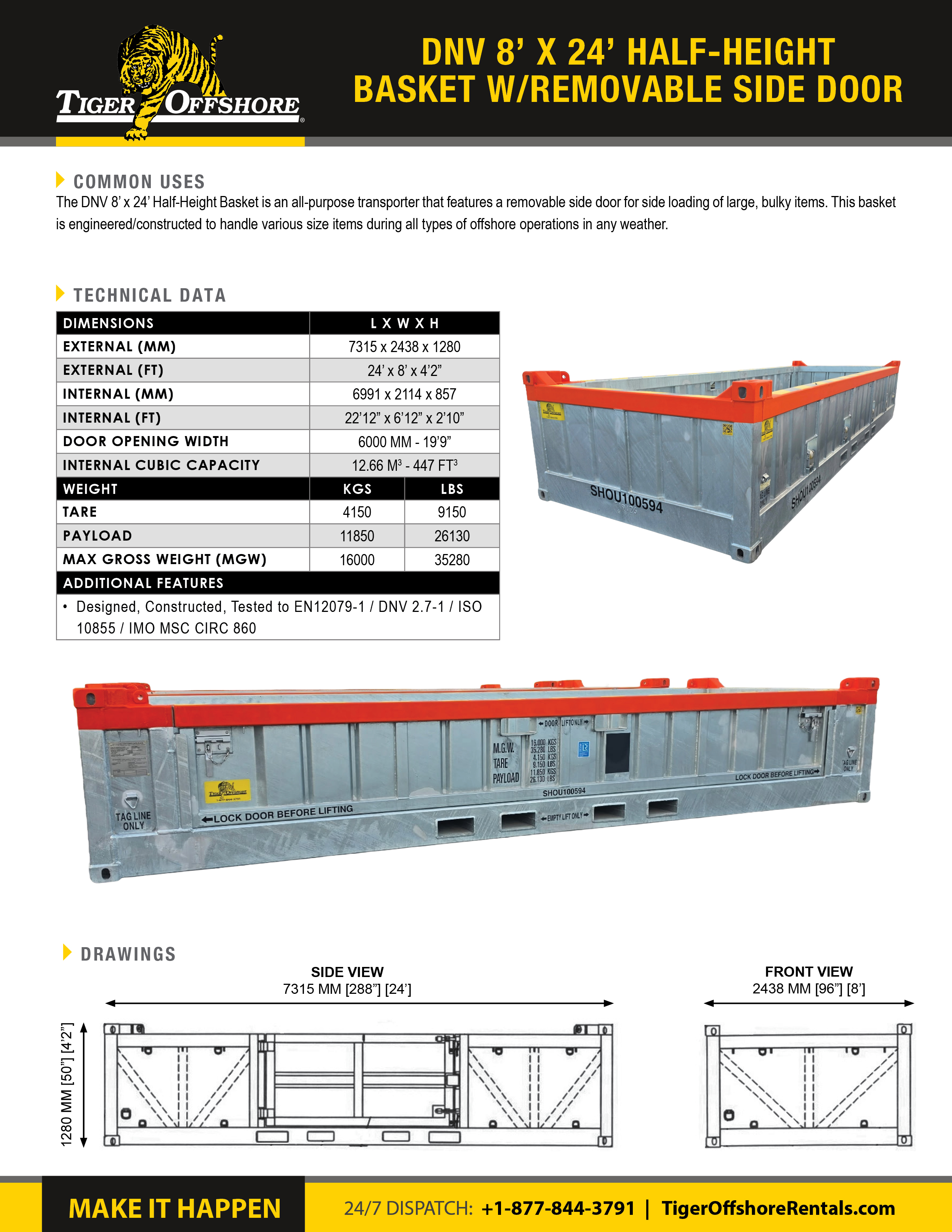

    DNV 7.3m 24' Half-Height Removeable Side Basket
