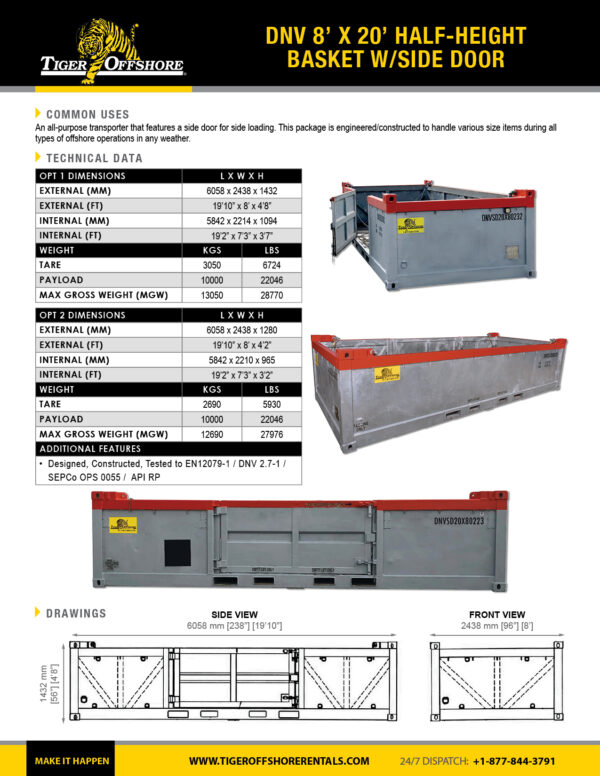

Description
OPT 1 DIMENSIONS (L x W x H)
- EXTERNAL (MM) – 6058 x 2438 x 1432
- EXTERNAL (FT) – 19’10” x 8’ x 4’8”
- INTERNAL (MM) – 5842 x 2214 x 1094
- INTERNAL (FT) – 19’2” x 7’3” x 3’7”
WEIGHT (KGS / LBS)
- TARE – 3050/6724
- PAYLOAD – 10000/22046
- MAX GROSS WEIGHT (MGW) – 13050/28770
OPT 2 DIMENSIONS (L x W x H)
- EXTERNAL (MM) – 6058 x 2438 x 1280
- EXTERNAL (FT) – 19’10” x 8’ x 4’2”
- INTERNAL (MM) – 5842 x 2210 x 965
- INTERNAL (FT) – 19’2” x 7’3” x 3’2”
WEIGHT (KGS / LBS)
- TARE – 2690/5930
- PAYLOAD – 10000/22046
- MAX GROSS WEIGHT (MGW) – 12690/27976
ADDITIONAL FEATURES
- Designed, Constructed, Tested to EN12079-1 / DNV 2.7-1 / SEPCo OPS 0055 / API RP
