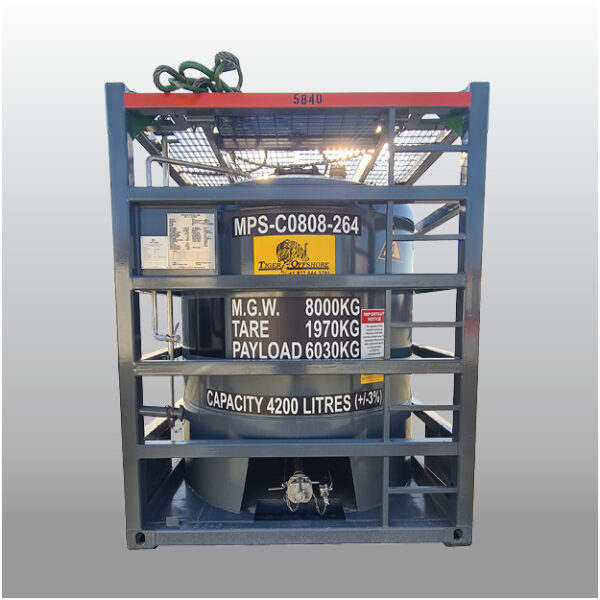

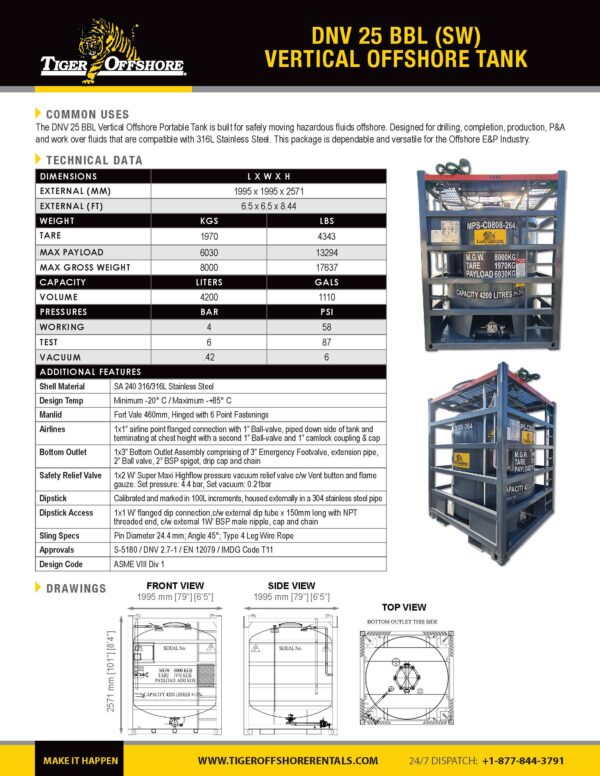

Description
DIMENSIONS (L x W x H)
- EXTERNAL (MM) – 1995 x 1995 x 2571
- EXTERNAL (FT) – 6.5 x 6.5 x 8.44
WEIGHT
- TARE – 1970 KGS / 4343 LBS
- PAYLOAD – 6030 KGS / 13294 LBS
- MAX GROSS WEIGHT (MGW) – 8000 KGS / 17637 LBS
CAPACITY
- VOLUME – 4200 L / 1110 GALS
PRESSURES
- WORKING – 4 BAR / 58 PSI
- TEST – 6 BAR / 87 PSI
- VACUUM – .42 BAR / 6 PSI
ADDITIONAL FEATURES
- Shell Material: SA 240 316/316L Stainless Steel
- Design Temp: Minimum -20° C / Maximum -+85° C
- Manlid: Fort Vale 460mm, Hinged with 6 Point Fastenings
- Airlines: 1×1” airline point flanged connection with 1” Ball-valve, piped downside of tank and terminating at chest height with a second 1” Ball-valve and 1” camlock coupling & cap
- Bottom Outlet: 1×3” Bottom Outlet Assembly comprising of 3” Emergency Foot valve, extension pipe, 2” Ball valve, 2” BSP spigot, drip cap and chain
- Safety Relief Valve: 1×2 W’ Super Maxi Highflow pressure vacuum relief valve c/w Vent button and flame gauze. Set pressure: 4.4 bar, Set vacuum: 0.21bar
- Dipstick: Calibrated and marked in 100L increments, housed externally in a 304 stainless steel pipe
- Dipstick Access: 1×1 W’ flanged dip connection, c/w external dip tube x 150mm long with NPT threaded end, c/w external 1W’ BSP male nipple, cap and chain
- Sling Specs: Pin Diameter 24.4 mm; Angle 45°; Type 4 Leg Wire Rope
- Approvals: S-5180 / DNV 2.7-1 / EN 12079 / IMDG Code T11
- Design Code: ASME VIII Div 1
