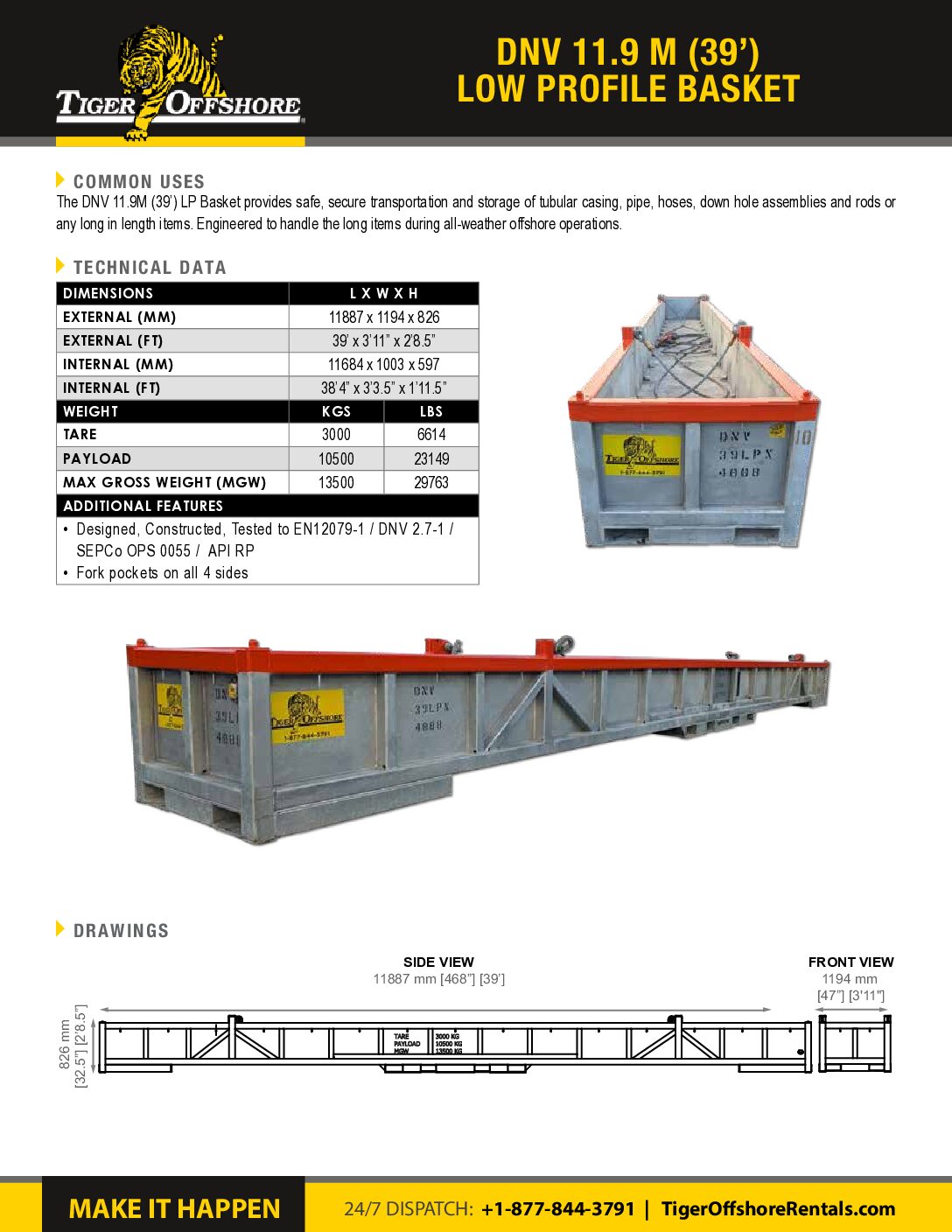

Description
DIMENSIONS (L x W x H)
- EXTERNAL (MM) – 11887 x 1194 x 826
- EXTERNAL (FT) – 39’ x 3’11” x 2’8.5”
- INTERNAL (MM) – 11684 x 1003 x 597
- INTERNAL (FT) – 38’4” x 3’3.5” x 1’11.5”
WEIGHT
- TARE – 3000 kgs / 6614 lbs
- PAYLOAD – 10500 kgs / 23149 lbs
- MAX GROSS WEIGHT (MGW) – 13500 kbs / 29763 lbs
ADDITIONAL FEATURES
- Designed, Constructed, Tested to EN12079-1 / DNV 2.7-1 / SEPCo OPS 0055 / API RP
- Fork pockets on all 4 sides
