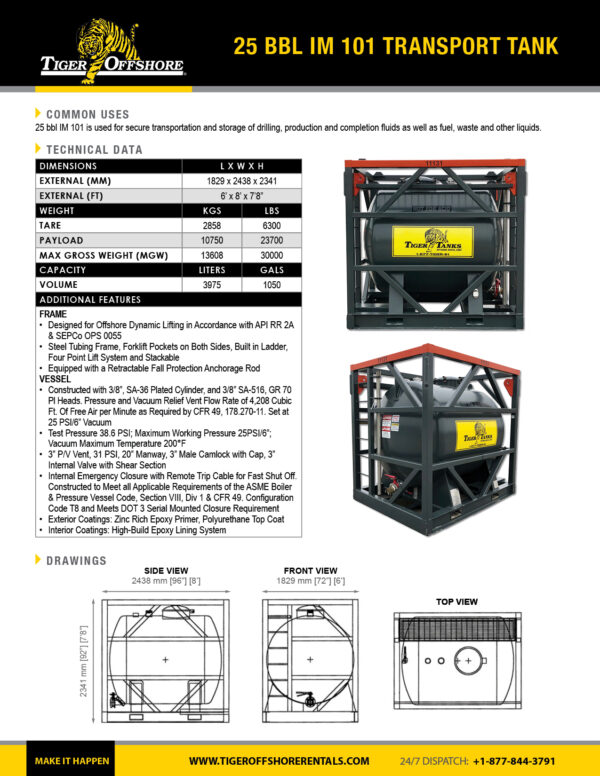

Description
DIMENSIONS (L x W x H)
- EXTERNAL (MM) – 1829 x 2438 x 2341
- EXTERNAL (FT) – 6’ x 8’ x 7’8”
WEIGHT
- TARE – 2858 KGS / 6300 LBS
- PAYLOAD – 10750 KGS / 23700 LBS
- MAX GROSS WEIGHT (MGW) – 13608 KGS / 30000 LBS
CAPACITY
- VOLUME – 3975 L / 1050 GALS

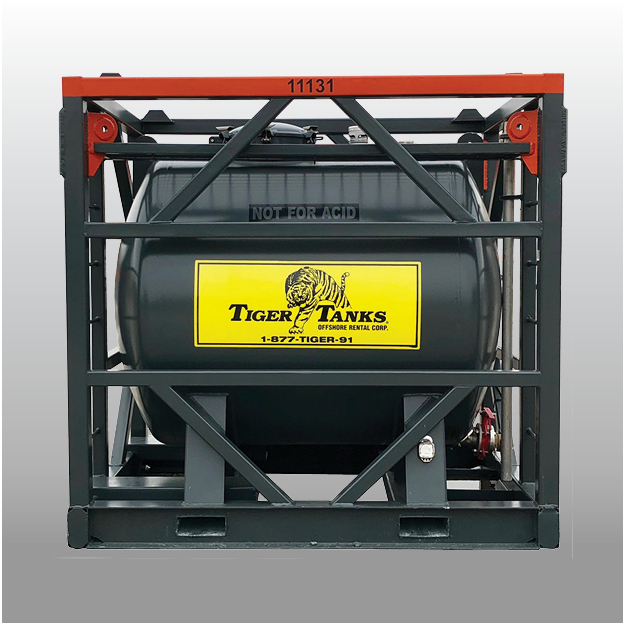

FRAME
- Designed for Offshore Dynamic Lifting in Accordance with API RR 2A & SEPCo OPS 0055
- Steel Tubing Frame, Forklift Pockets on Both Sides, Built in Ladder, Four Point Lift System and Stackable
- Equipped with a Retractable Fall Protection Anchorage Rod
VESSEL
- Constructed with 3/8”, SA-36 Plated Cylinder, and 3/8” SA-516, GR 70 Pl Heads. Pressure and Vacuum Relief Vent Flow Rate of 4,208 Cubic Ft. Of Free Air per Minute as Required by CFR 49, 178.270-11. Set at 25 PSI/6” Vacuum
- Test Pressure: 38.6 PSI; Maximum Working Pressure 25PSI/6”; Vacuum Maximum Temperature 200°F
- 3” P/V Vent, 31 PSI, 20” Manway, 3” Male Camlock with Cap, 3” Internal Valve with Shear Section
- Internal Emergency Closure with Remote Trip Cable for Fast Shut Off. Constructed to Meet all Applicable Requirements of the ASME Boiler & Pressure Vessel Code, Section VIII, Div 1 & CFR 49. Configuration Code T8 and Meets DOT 3 Serial Mounted Closure Requirement
- Exterior Coatings: Zinc Rich Epoxy Primer, Polyurethane Topcoat
- Interior Coatings: High-Build Epoxy Lining System
