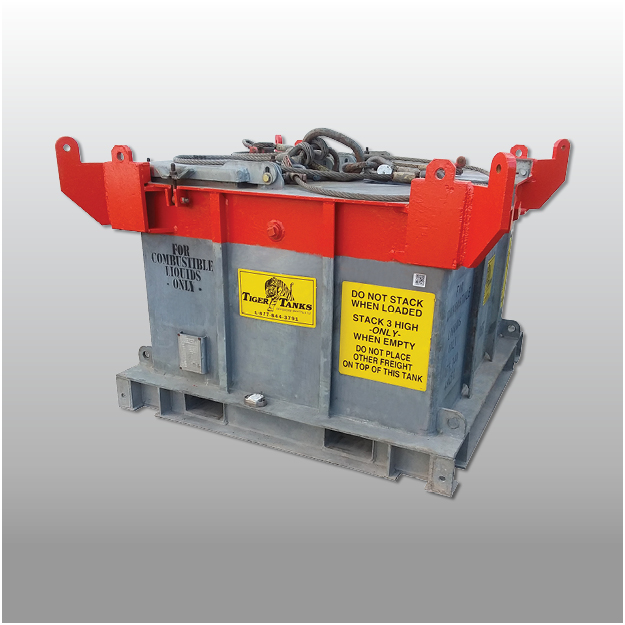

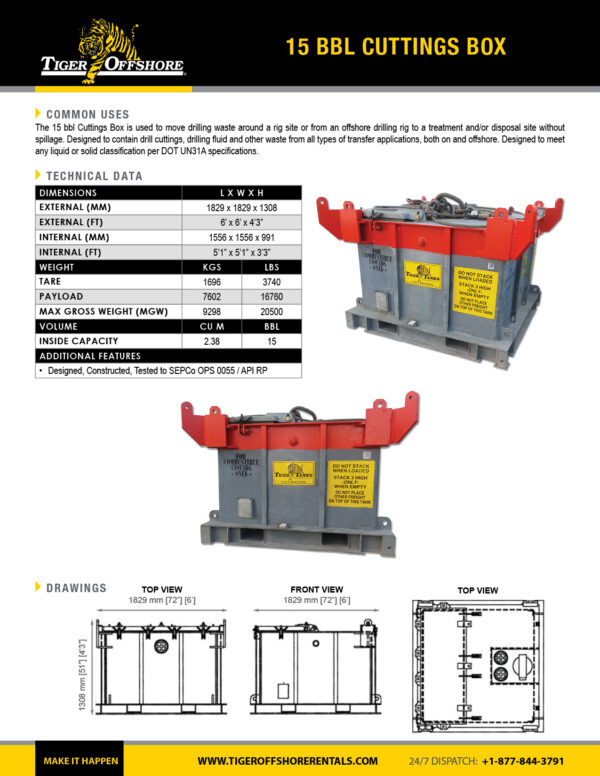

Description
DIMENSIONS (L x W x H)
- EXTERNAL (MM) – 1829 x 1829 x 1308
- EXTERNAL (FT) – 6’ x 6’ x 4’3”
- INTERNAL (MM) – 1556 x 1556 x 991
- INTERNAL (FT) – 5’1” x 5’1” x 3’3”
WEIGHT
- TARE – 1696 KGS / 3740 LBS
- PAYLOAD – 7602 KGS / 16760 LBS
- MAX GROSS WEIGHT (MGW) – 9298 KGS / 20500 LBS
VOLUME
- INSIDE CAPACITY – 2.38 CU M / 15 BBL
ADDITIONAL FEATURES
- Designed, Constructed, Tested to SEPCo OPS 0055 / API RP
